Metal Stamping
|

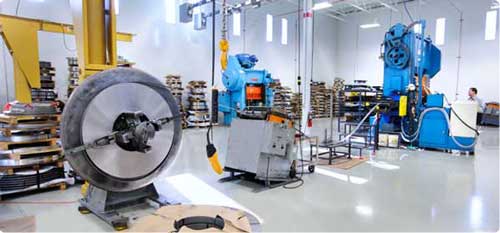

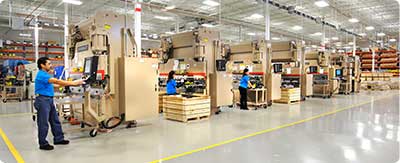

S&D Products has expanded its commitment to production of the highest quality parts in metal stamping with the use of stamping presses and turret presses.
Our metal stamping capabilities are based on our years of metal working experience coupled with the latest technology available in metal stamping and our trained staff. S&D Products metal stamping capabilities provides for quick turnaround times and rapid production of complex items that require precise dimensions, shapes and cuts. Our commitment to metal stampings covers both short or long run orders. With the versatility of our equipment we can be cost effective with tooling and piece part pricing. The complexity and the volume of your part will help us determine which process would be best for your project, progressive tooling or single stage tooling. |
|
|
Vital Information for Metal Stamping
| Automation | Operators trained& certified in the use of multiple machines. | |
| Metal Forming Capabilities |
• CNC Punching • CNC Laser Cutting • CNC Stamping |
• Press Brake Forming • Punch Press Stamping • Metal Stamping • Turret Punching |
| Secondary Operations |
• Tooling • Die Tapping • Tapping & Deburring • Staking • Cleaning |
• Heat Treating • Plating • Anodizing • Painting • Value Added Processes |
| Materials |
• Aluminum (various grades) • Mild Steel • High Strength (HSLA) Steel • Cold Rolled Steel • Hot Rolled Pickled & Oiled Steel (HRP&O) • Galvanized Steel |
• Brass • Copper • Stainless Steel (various grades) • Titanium • Other Materials, Gauges, Thickness & Tolerances |
| Volume Capabilities | Prototype Runs to Several Million Pieces Annually Depending on Product Complexity & Application | |
| Quality Assurance |
• KAN BAN/LEAN • JIT • Six Sigma Capabilities • EDI Electronic Data Interchange • C of C Certificate of Compliance •Conform to ISO 9001best practices |
|
| Data Exchange |
• ProEngineer • AutoCAD • Master CAM • SolidWorks Part Files • Catia CAD/CAM |
• SolidWorks Assembly Files • 2D & 3D DXF Files • 2D & 3D IGES Wireframe • Other CAD/CAM Formats • PDF, JPEG |
| Industries Served |
• Agriculture Equipment • Air Conditioning Equipment • Audio Distribution Components • Automation Equipment • Automotive (tier 2 or 3) • Bath & Shower • Boat Builders • Boating • Cabinets • Components Automation Equipment • Computer Equipment • Controls & Instrumentation • Department of Defense • Electronics & Control Cabinets • Food Processing Equipment • Government • Hardware Distributors • Heating, Ventilation & AC Equipment |
• Home Hardware • Marine Hinges • Manufacturing Equipment • Medical Devices • Medical Appliances • Military & Defense • OEM Products • Power Systems • Recreational Vehicles • Restaurant Equipment • Security Equipment • Subsystem Enclosures • Storm Doors • Specialty Use Vehicles • Toolboxes • Transportation • Truck Body |
| Hinge Types |
• Continuous Hinges • Piano Hinges • Heavy Duty Hinges • Custom Hinges • More Hinges |
|
In press brake forming, a work piece is positioned over the die block and the die block presses the part to form the desired angle or shape. When sheet metal is bent, it stretches in length. The bend allowance is the amount the sheet metal will stretch when bent as measured from the outside edges of the bend. The bend radius refers to the inside radius. The formed bend radius is dependent upon the dies used, the material properties, and the material thickness.
Bending is a manufacturing process that produces a V-shape, U-shape, or channel shape along a straight axis in ductile materials, most commonly sheet metal or coil.
Bending is a manufacturing process that produces a V-shape, U-shape, or channel shape along a straight axis in ductile materials, most commonly sheet metal or coil.
|
Metal stamping includes a variety of metal forming manufacturing processes, such as punching using a machine press, stamping press, or turret press, blanking, embossing, bending, flanging, swaging, and coining. This could be a single stage operation where every stroke of the press produces the desired form on the sheet metal part, or could occur through a series of stages with progressive tooling. This process is usually carried out on sheet metal or coil.
|
|
|
